Product Details

The SuperFlow series pressure tanks feature an interchangeable membrane design, allowing for easy replacement of the membrane as needed. This design ensures long-term flexibility and ease of maintenance. Larger models come equipped with a built-in pressure gauge, enabling efficient pressure monitoring and precise system pressure control. Designed to the EN13831:2007 technical standard and produced in accordance with the Pressure Equipment Directive 2014/68/EU, these tanks guarantee premium quality and reliability for all your high-pressure applications.

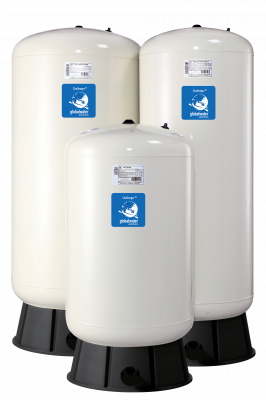

Pressure tanks with replaceable membrane

SuperFlow™ pressure tanks are ideally suited for applications where high volumes and high pressure ratings are required. Engineered to meet the most rigorous system demands, SuperFlow tanks are perfect for use in pressure booster systems, hot water circulation systems, and water hammer arresting in high-rise and multistory buildings—including hotels, hospitals, or business centers.

The interchangeable membrane design ensures long-term flexibility and ease of maintenance. It allows the end user to replace the membrane when needed, increasing tank longevity. The built-in pressure gauge (included in 100 L / 26.4 G models and above) supports efficient pressure monitoring, allowing real-time tracking of internal conditions.

Manufactured in a GWS SuperFlow-dedicated ISO9001, ISO14001, and ISO45001 approved facility, each tank is quality tested at several stages of the production process to ensure premium quality and system safety. The SuperFlow series is designed according to EN13831:2007 and complies with the Pressure Equipment Directive 2014/68/EU, supporting dependable system pressure control.

With SuperFlow series tank volumes ranging from 50 – 10,000 L / 60 – 2,640 G, the series represents one of the most versatile and comprehensive pressure tank offerings worldwide.

Key Features of SuperFlow™ Pressure Tanks with Built in Pressure Gauge

• Available pressure ratings: 10 | 16 | 25 bar

• Built-in pressure gauge for efficient pressure monitoring

• Replaceable fix indentation grade butyl membrane

• Corrosion-resistant stainless steel water connection

• Durable carbon steel shell for enhanced structural integrity

• Lifting lugs for easy transport and on-site handling

• Interchangeable membrane design for ease of maintenance

• Produced to EN13831:2007 and Pressure Equipment Directive 2014/68/EU standards

• Manufactured in a GWS SuperFlow certified facility with ISO14001 and ISO45001 certifications

Technical Specifications

• Tank volumes: 50 to 10,000 liters

• Pressure ratings: 10, 16, and 25 bar

• Interchangeable membrane design

• Built-in pressure gauge available on larger models

• Designed to the EN13831:2007 technical standard

• Produced in accordance with the Pressure Equipment Directive 2014/68/EU

• Suitable for temperatures up to 95°C (203°F)

• Available with different connections, including 2” BSPT and 1¼” BSPT

SuperFlow™ is ideally suited for pressure booster systems:

• Pressure booster systems

• District heating water circulation

• Water hammer arresting in high-rise and multistory buildings

• Hot water circulation systems

• Commercial applications

• Commercial buildings

• Water utility supplies

• Irrigation systems

• Other high volume and high pressure applications

Whether you’re designing for heating expansion, system pressure control, or protection from water hammer arresting in high-rise structures, SuperFlow™ series tanks deliver the reliable performance and premium quality that engineers, contractors, and consultants trust worldwide.

Maintenance and Support

Regular maintenance is essential to ensure the optimal performance and longevity of the SuperFlow series pressure tanks. Recommended maintenance practices include:

• Pre-charge checks every 3 months

• Regular inspection of the tank and its components

• Replacement of the membrane as required

• Cleaning and descaling of the tank as necessary

GWS provides a limited warranty for manufacturing defects on the steel shell for 1 year from the date of purchase, and a warranty for replacement of the membrane for 3 months from the date of purchase. To qualify for the warranty, the tank must be installed by an authorized installer and the pre-charge must be set properly.
